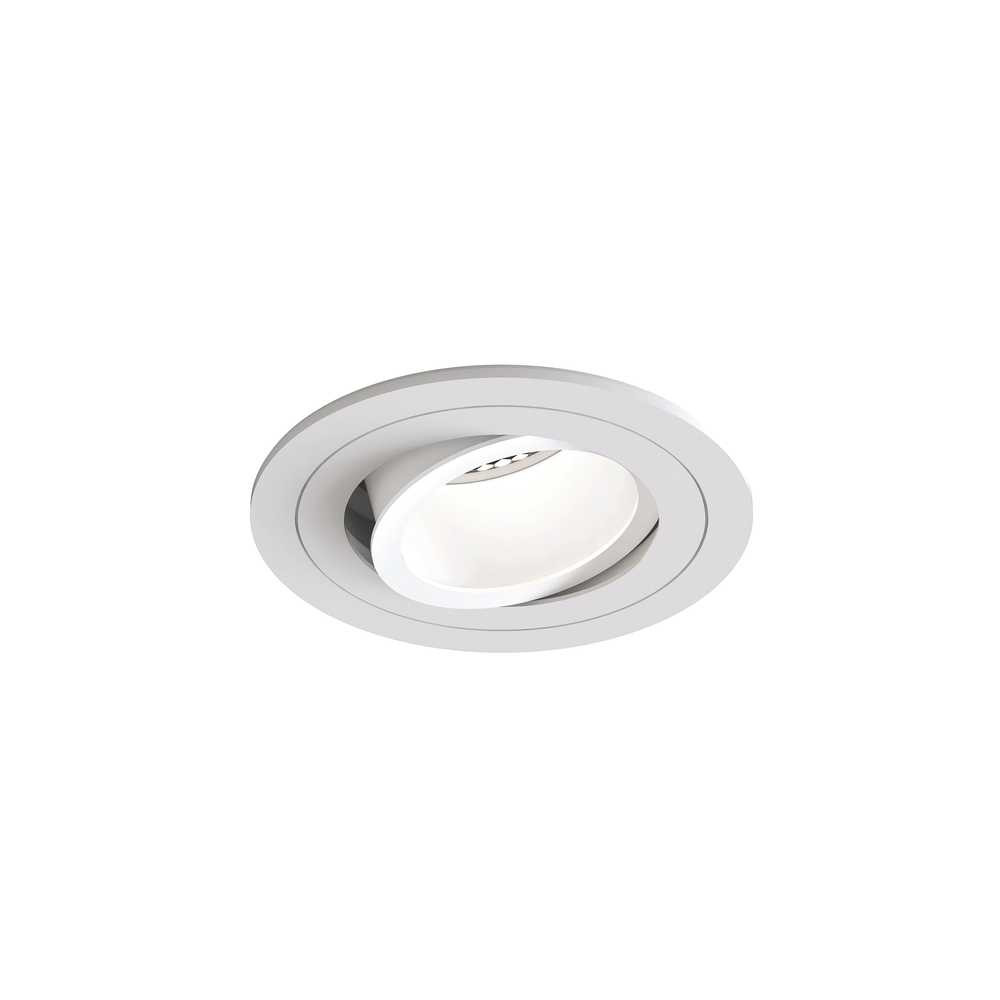

Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
63.46 €
57.11 €

Pinhole Slimline Round Adjustable Fire-Rated

Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
Pinhole Slimline Round Adjustable Fire-Rated
Available for order
10
63.46 €
57.11 €
Begin: 18/04/2025   End: 21/04/2025
Discount: 10
Saving 6.35 €
Remaining time of sale:
day
hour
min
sec
Bonus point : 0.57 €
Manufacturer's stock
55 db
2-weeks stock arrival
Info
Manufacturer
Astro
Finish
Matt White
Material / Finish
Steel
IP rating (Ingress Protection rating)
IP20
Product family
Pinhole
Type
Downlight/Recessed Spot Light
Protection class
Class II - Double Insulated
Bathroom zone
Zone 3
Driver required?
No
Fire rated
30 min, 60 min & 90 min Solid Joist EN1365-2; 30 min Metal Web / I-Joist EN1365-2
Fire mark
Not suitable for covering with thermal insulation
Switched
No
Type of dimmer
Lamp Dependent
Integrated LED / Bulb Included
No
Primary Light Source Quantity
1
Primary Light Source Lifetime (Hrs)
Lamp Dependent
Primary Lamp Cap Type
LED GU10
Primary Lumen Output
Lamp Dependent
Primary Colour Temperature
Lamp Dependent
Primary CRI
Lamp Dependent
Primary Recommended Lamp and Power
1 x 6W Max LED GU10
Primary Rated Lamp and Power
1 x 6W Max LED GU10
Primary Beam Angle
Lamp Dependent
Maximum Lamp Length (mm)
73
Primary Light Source Shape
MR16
Product Weight (kg)
0.270
Product Height (mm)
69 + lamp length
Product Diameter (mm)
90
Inner Carton Height (m)
0.111
Inner Carton Width (m)
0.120
Inner Carton Depth (m)
0.116
Inner Carton Weight (kg)
0.4000
Inner Carton Cube (m³)
0.0015
Outer Carton Height (m)
0.475
Outer Carton Width (m)
0.490
Outer Carton Depth (m)
0.260
Outer Carton Weight (kg)
14.0000
Outer Carton Quantity
32
Outer Carton Cube (m³)
0.0019
Commodity Code (Import)
9405199090
Commodity Code (Export)
94051990
Fragile?
No
Installation Orientation
Ceiling Mount
Cutout Diameter
83mm / 3-1/4in
Cutout Shape
Round
Recess Depth
150
Secondary Material Category
Glass
Secondary Material
Glass - Float
Country of Origin
China
Salt Spray Test
Not Tested
Power Supply Type
Mains 230V
Special Features
use of special glass means this fire rated downlight is incredibly shallow, deeply recessed lamp minimises glare for visual comfort, supplied complete with optional honeycomb glare guard
Placement Options
in all indoor spaces
Casambi Compatible
Yes - with Casambi Phase Dimmer/Relay
Tilt Adjustment Angle
25
Rotation Adjustment Angle
360
Guarantee (Years)
3 Years
Light Effect
ambient light
Design Type
contemporary
Article No.
ASTRO-1434003
