Extra low voltage power cable coated with silk effect material ZigZag white and blue RZ12 - 50 m

123.86 €

Extra low voltage power cable coated with silk effect material ZigZag white and blue RZ12 - 50 m

Name: Extra low voltage power cable coated with silk effect material ZigZag white and blue RZ12 - 50 m
Brand: Creative-Cables
SKU: CREATIVECABLES-CB2035RZ12
Price: 123.86 EUR
Availability: InStock

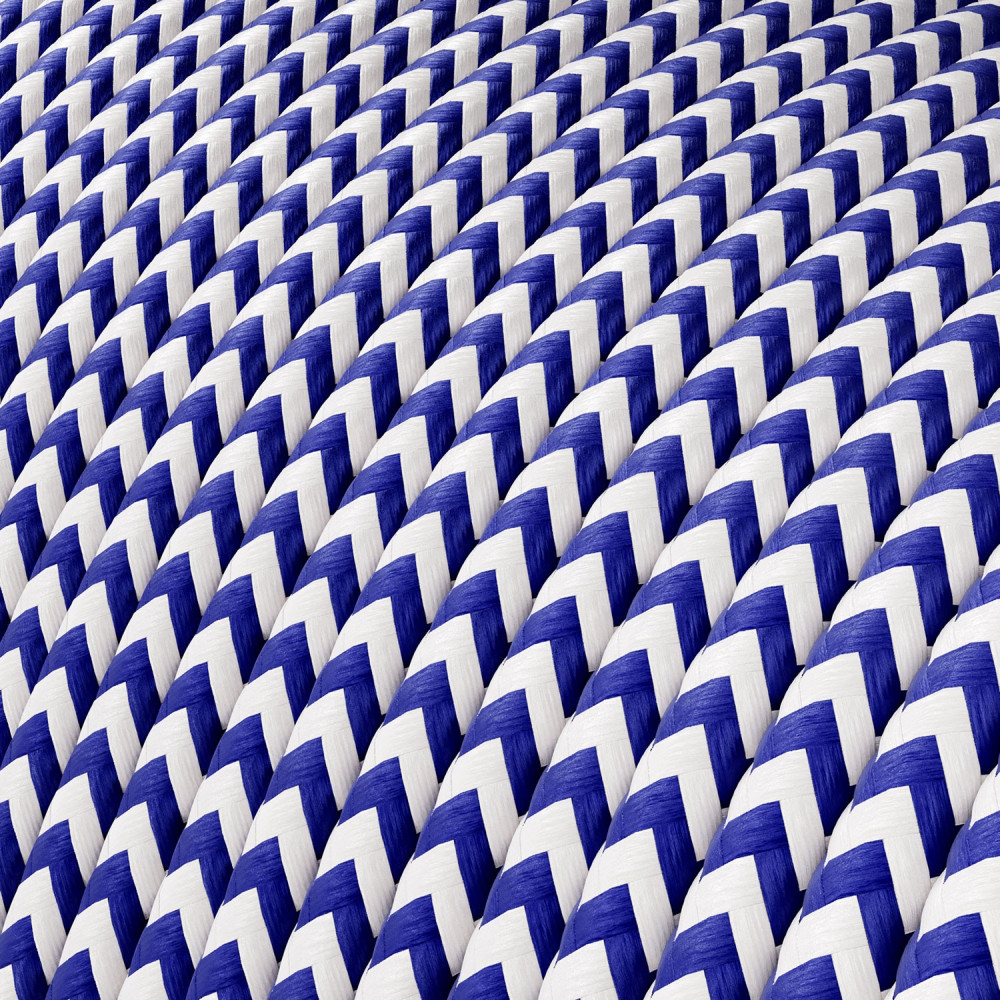

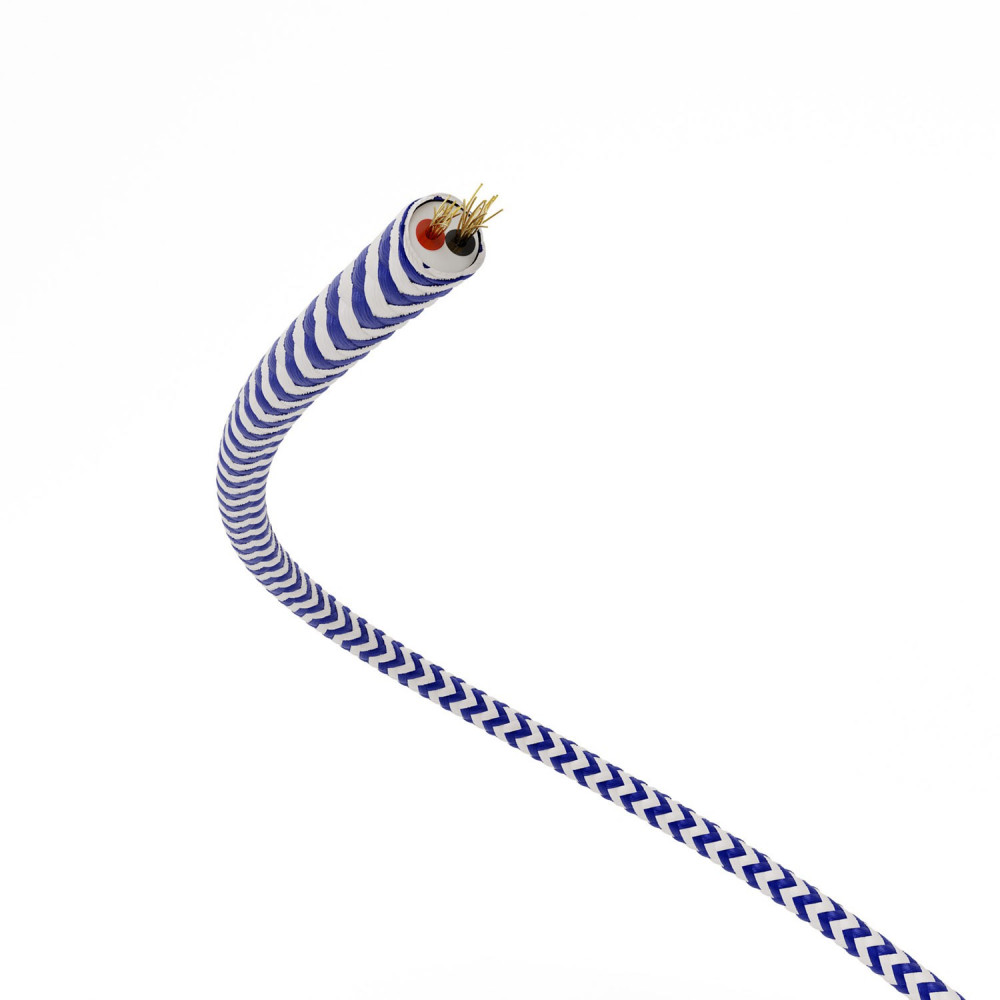

The two-pin, extra-low-voltage electric cable made of white, highly flexible silicone is covered with a silk-effect ZigZag White and Blue RZ12 fabric. The cable has a diameter of 3.5 mm (with a cover of approx. 4 mm), 2 copper conductors covered with black and red silicone rubber, with a cross section of 0.35 mm2.

The size and structure of the cable make it suitable for voltages lower than 48V For LED applications. The cable is ideal for III. class movable lamps (table / standing lamps), as well as class II. for fixed equipment (wall, ceiling and pendant lights) of class 2, with a nominal current of up to 2 A.

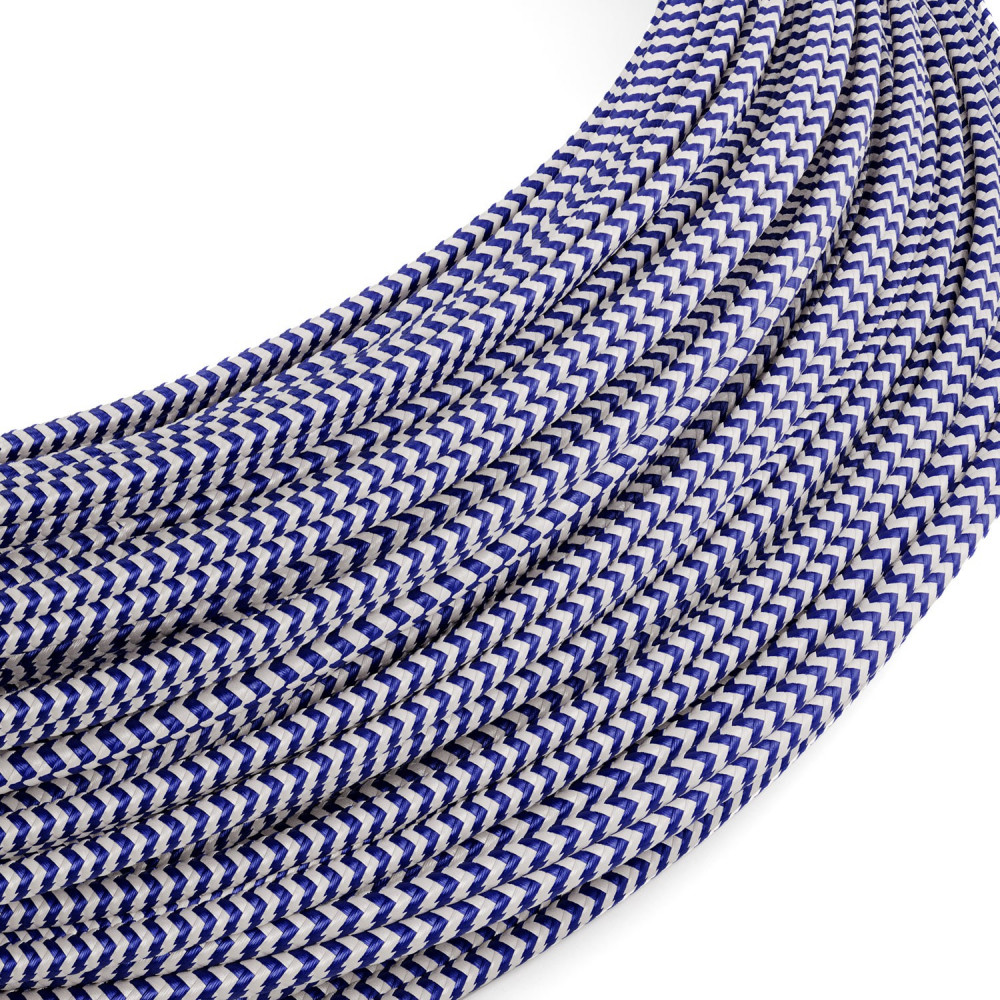

Measuring drums available in version 50

WARNING DO NOT USE ON MAINS VOLTAGE - DO NOT USE FOR HALOGEN LAMPS

Details

Available for order

I don´t want extra services.

Assembling parts +2.44 € / piece/s

123.86 €

Bonus point : 1.24 €

Manufacturer's stock

2 piece/s

1-week stock arrival

Details

Technical data:
Flexible bipolar cable insulated with white silicone
Outer diameter 3.8 mm
2 copper conductors, black and red rubber sections coated 0.35 mm
Rated voltage 300/ 500 V
Test voltage 2 kV
IEC EN 60228, class 5
IEC EN 60754-1/2

Info

Manufacturer

Creative-Cables

Manufacturer product number

CB2035RZ12

Article No.

CREATIVECABLES-CB2035RZ12

Minimum order quantity

3 piece/s
