Connection set with cable protection box and double cable clamps

Name: Connection set with cable protection box and double cable clamps
Brand: Creative-Cables
SKU: CREATIVECABLES-MORINC
Price: 3.2 EUR
Availability: InStock

The connector set required for suspension with a recessed ceiling rose enables quick and safe connection.

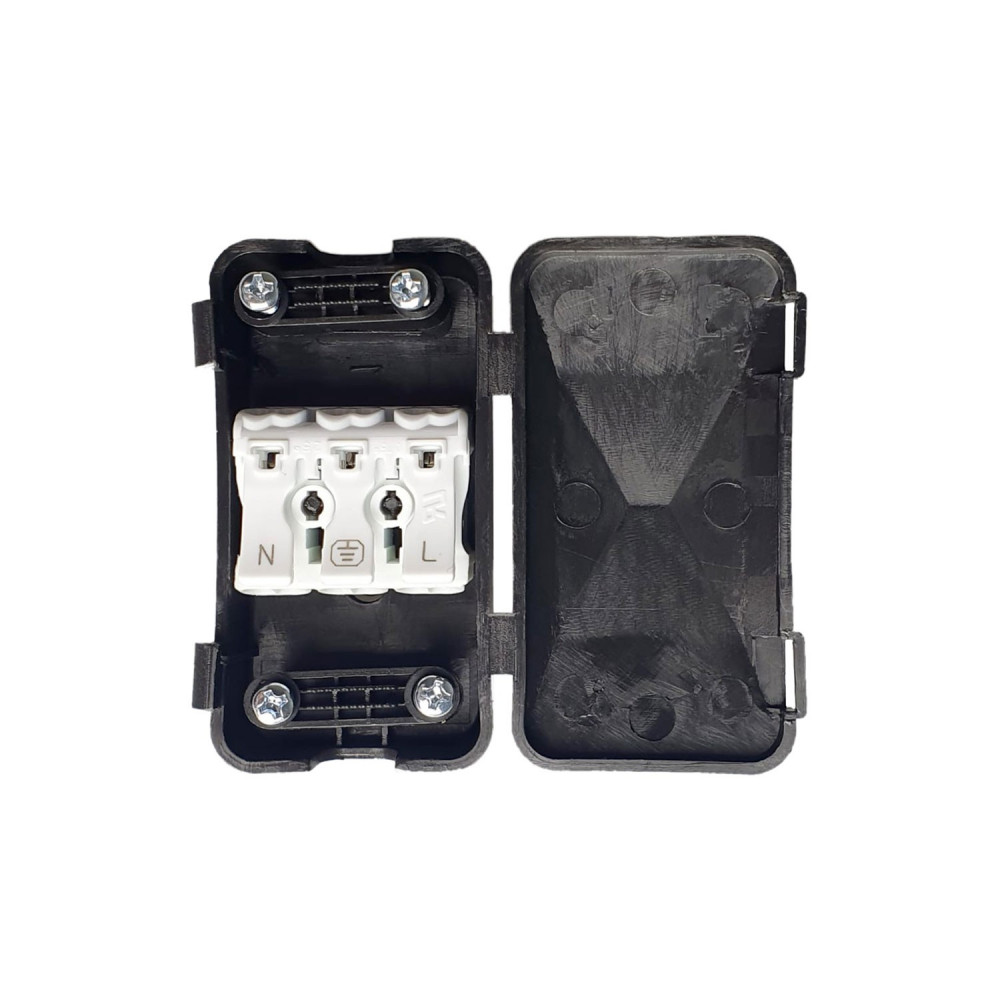

The plastic box acts as an insulator and protects the connectors inside. It is also equipped with two cable clamps, one on each side, which ensure the safety and strength of the cables in case of any external stress.

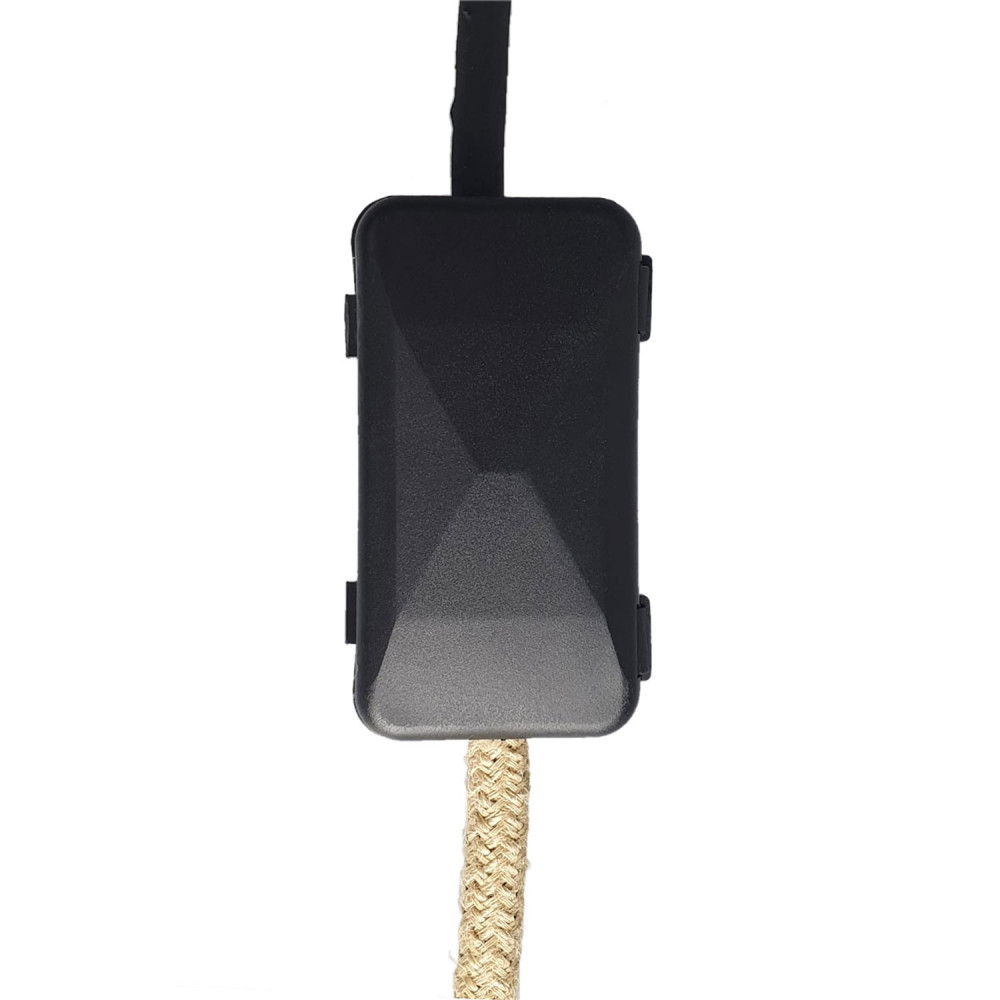

The connection is hidden inside the plasterboard ceiling and can be replaced by the classic ceiling rose with the recessed rose, simple and minimalist. with connection.

Details

Available for order

I don´t want extra services.

Assembling parts +2.51 € / piece/s

3.56 €

3.20 €

Begin: 14/03/2025 End: 16/03/2025

Discount: 10

Saving 0.36 €

Remaining time of sale:

day

hour

min

sec

Bonus point : 0.03 €

Manufacturer's stock

103 piece/s

1-week stock arrival

Details

Technical data of the connector set with protective box and double cable clamp:
Length: 62 mm
Width: 34 mm
Height: 21 mm

1 connector - 2 inputs per pole < br /> Number of inputs per side: 6
Permitted cable cross-section from 0.75 mm2 to 2.5 mm2
Nominal voltage: 450 V
Nominal current: 24 A
Maximum permitted ambient temperature according to EN 60998: 85° C
suitable for class 1 luminaires.

Info

Manufacturer

Creative-Cables

Manufacturer product number

MORINC

Article No.

CREATIVECABLES-MORINC
